Pneumatic Drilling Rig with 100-350mm Hole Diameter and Pneumatic Drive System for Rocky Strata

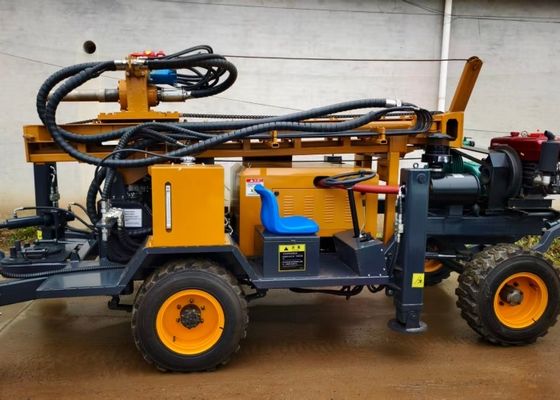

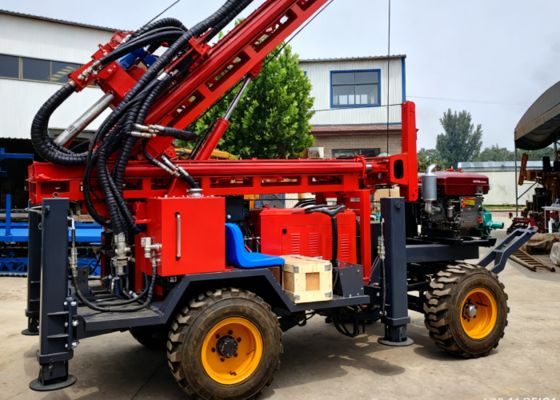

Großes Bild : Pneumatic Drilling Rig with 100-350mm Hole Diameter and Pneumatic Drive System for Rocky Strata

Produktdetails:

Herkunftsort:	China
Markenname:	JINZHOU SHITAN
Zertifizierung:	ISO/CE/COC
Modellnummer:	ST-260

Zahlung und Versand AGB:

Min Bestellmenge:	1 Satz
Preis:	Verhandelbar
Verpackung Informationen:	Standard-Exportpaket
Lieferzeit:	7-10 Tage
Zahlungsbedingungen:	T/T, Western Union
Versorgungsmaterial-Fähigkeit:	2000 Sätze pro Jahr

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Tiefbohrgeräte	Modellnummer:	St. 260
Maschinentyp:	Bohrrohr für Wasserwell -Bohrer	Zertifizierung:	ISO/CE/COC
Lochdurchmesser:	100-350 mm	Bohrtiefen:	180 Meter
Zustand:	NEU	Bohrstange:	76/89mm
Garantie:	12 Monate	Rotationsdrehmoment:	7500 nm, 983 nm, 4200n.m, 3400 mm
After Sale Service:	Videounterstützung	Farbe:	Gelb, Rot und Blau
Hervorheben:	100-350mm Hole Diameter Pneumatic Drilling Rig , Pneumatic Drive System Borewell Drilling Equipment , Rocky Strata Specialized Deep Borehole Drilling Equipment

Large Torque Diesel Engine Powerful Borewell Drilling Equipment High Efficiency 260 Meters

ST 260 Pneumatic Drilling Rig - Premium Blasting Borehole Solution Designed for Rocky Strata. This high-performance rig is specialized in underground deep drilling (max. 180m), adopting advanced pneumatic technology to achieve superior efficiency in rock penetration for blasting projects.

Key Features

Professional deep well drilling solution: The rig can drill up to 260 meters, powered by a pneumatic drive system for strong performance.
Well-suited for hydrogeological exploration and water well drilling, boasting great adaptability to complex geological conditions.
Backed by ISO certification and a 12-month warranty, it offers peace of mind for every drilling project.

Product Specifications

Parameter	Technical Data
Model Number	Wheels-mounted drilling rig
Machine Type	Drilling Equipment
Certification	ISO, CE
Hole Diameter	Customized (90-300mm)
Drilling Depths	260 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m
Air Consumption	16-30 M3/min, 20-100m3/min
Power Source	Diesel Engine (150HP)
Drilling Speed	0-120 rpm
Travel Speed	5-10 km/h

Technical Details

Equipped with diesel power, this rig features dimensions of 6400MM*2250MM*2700MM and a weight of 5800KG.
Offers a rotary speed range of 0-90rpm, travelling speed of 0-2.5km/h.
Compatible with 76*2m + 76*3m drilling rods for versatile operations.

Equipment Components

Pneumatic System: Provides power to drive the rotation and impact of the drill bit
Drill Rod System: Multiple sections of drill rods for gradual penetration
Drill Bit: Various types available based on geological conditions
Control System: Adjusts drilling parameters like rotation speed and impact force
Debris Removal System: Uses compressed air or mud to keep borehole clean

Safety Precautions
