76/89mm Drilling Rod and Pneumatic Drive System for 180 Meters Depth Water Well Drilling

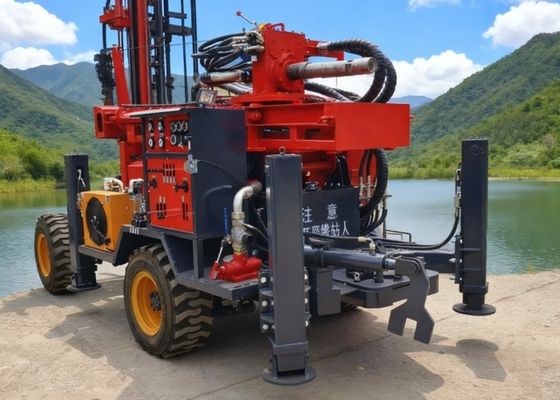

Großes Bild : 76/89mm Drilling Rod and Pneumatic Drive System for 180 Meters Depth Water Well Drilling

Produktdetails:

Herkunftsort:	China
Markenname:	JINZHOU SHITAN
Zertifizierung:	ISO/CE/COC
Modellnummer:	ST-180

Zahlung und Versand AGB:

Min Bestellmenge:	1 Satz
Preis:	Verhandelbar
Verpackung Informationen:	Standard-Exportpaket
Lieferzeit:	7-10 Tage
Zahlungsbedingungen:	T/T, Western Union
Versorgungsmaterial-Fähigkeit:	2000 Sätze pro Jahr

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Tiefbohrgeräte	Modellnummer:	ST180
Maschinentyp:	Bohrrohr für Wasserwell -Bohrer	Zertifizierung:	ISO/CE/COC
Lochdurchmesser:	100-350 mm	Bohrtiefen:	180 Meter
Zustand:	NEU	Bohrstange:	76/89mm
Garantie:	12 Monate	Rotationsdrehmoment:	7500 nm, 983 nm, 4200n.m, 3400 mm
After Sale Service:	Videounterstützung	Farbe:	Gelb, Rot und Blau
Hervorheben:	12-month warranty Pneumatic Drilling Rig , Pneumatic drive system Water Well Drilling Rig , Rocky layer blasting borehole Borehole Drilling Equipment

180 Meters Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

Product Description

ST 200 Pneumatic Drilling Rig for Rocky Layer Blasting Borehole. Professional-grade borehole drilling equipment designed for deep underground operations in rocky layers, with capability to drill up to 200 meters.

Key Features

Designed for deep well drilling up to 200 meters
Pneumatic drive system for powerful performance
Suitable for hydrogeological exploration and water well drilling
Excellent adaptability for complex geological conditions
ISO certified with 12-month warranty

Product Specifications

Attribute	Value
Model Number	Crawler-mounted drilling rig
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized (90-300mm)
Drilling Depths	200 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m
Air Consumption	16-30 M3/min, 20-100m3/min
Color Options	Yellow, Red and Blue

Technical Details

Power: Diesel
Dimensions: 6400MM * 2250MM * 2700MM
Weight: 5800KG
Rotary Speed: 0-90rpm
Travelling Speed: 0-2.5km/h
Drilling Rods: 76*2m + 76*3m

Equipment Components

Pneumatic System: Provides power to drive the rotation and impact of the drill bit
Drill Rod System: Multiple sections of drill rods for gradual penetration
Drill Bit: Various types available based on geological conditions
Control System: Adjusts drilling parameters like rotation speed and impact force
Debris Removal System: Uses compressed air or mud to keep borehole clean

Safety Precautions
